Transformer Bushing
A transformer bushing is a critical component used in high-voltage transformers to insulate and pass electrical conductors through the transformer’s oil tank. It ensures electrical insulation and prevents oil leakage. There are two main types of dry-type transformer bushings: ceramic and silicone rubber. Ceramic dry-type transformer bushings are known for their excellent thermal and chemical stability, making them suitable for high-voltage applications and harsh environments. On the other hand, silicone rubber dry-type transformer bushings offer superior aging resistance and tracking resistance, ideal for complex or outdoor environments. Both types are designed to provide reliable performance and long-term durability in transformer systems.

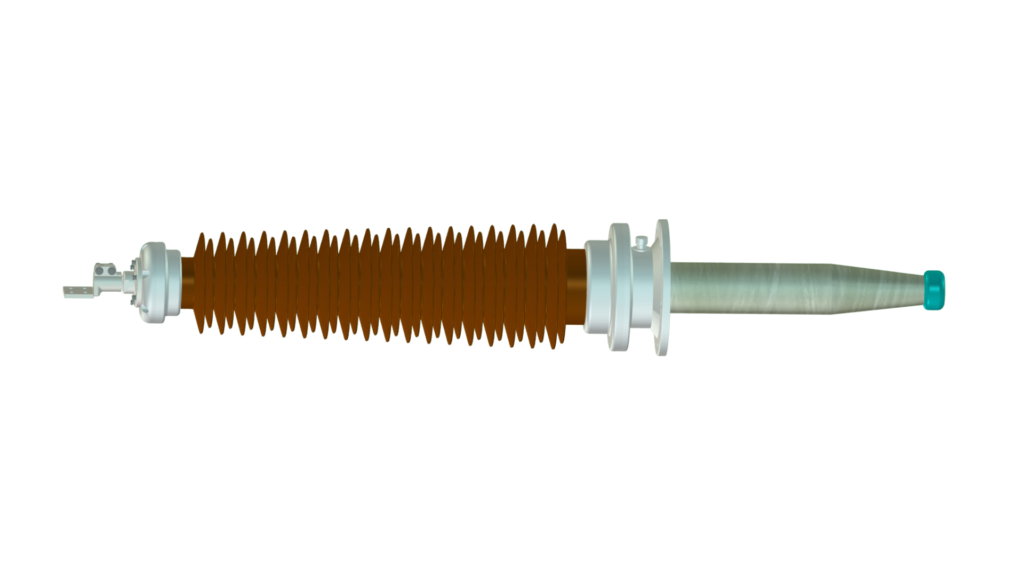

RIF Capacitance Graded Transformer Bushing External Insulation with Porcelain
(12 kV, 24 kV, 40.5 kV, 72.5 kV, 126 kV, 252 kV, 363 kV, 5000A-8000A, 10000A-31500A)

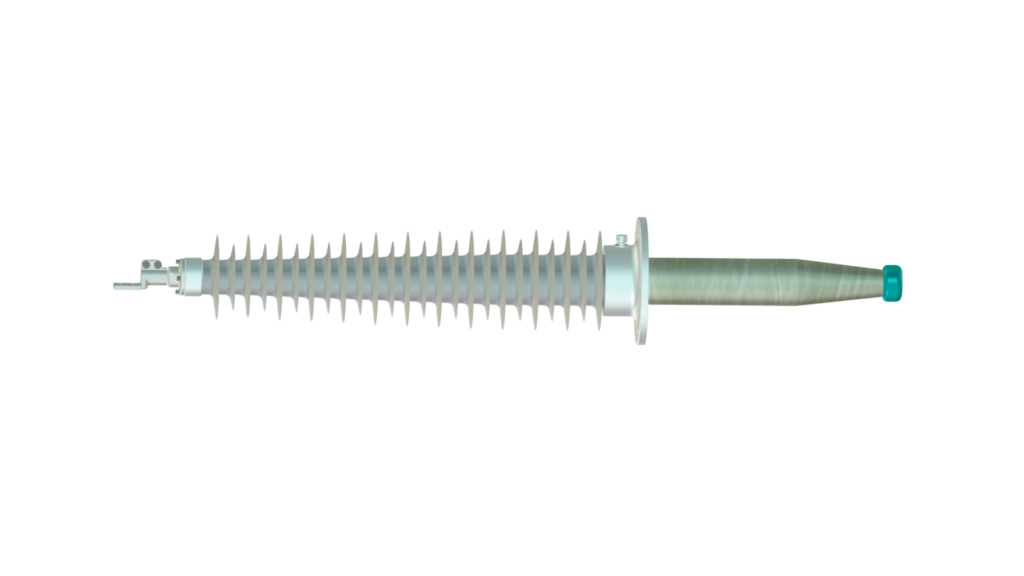

RIF Capacitance Graded Transformer Bushing External Insulation with Silicone Rubber
(12 kV, 24 kV, 40.5 kV, 72.5 kV, 126 kV, 252 kV, 363 kV, 5000A-8000A, 10000A-31500A)

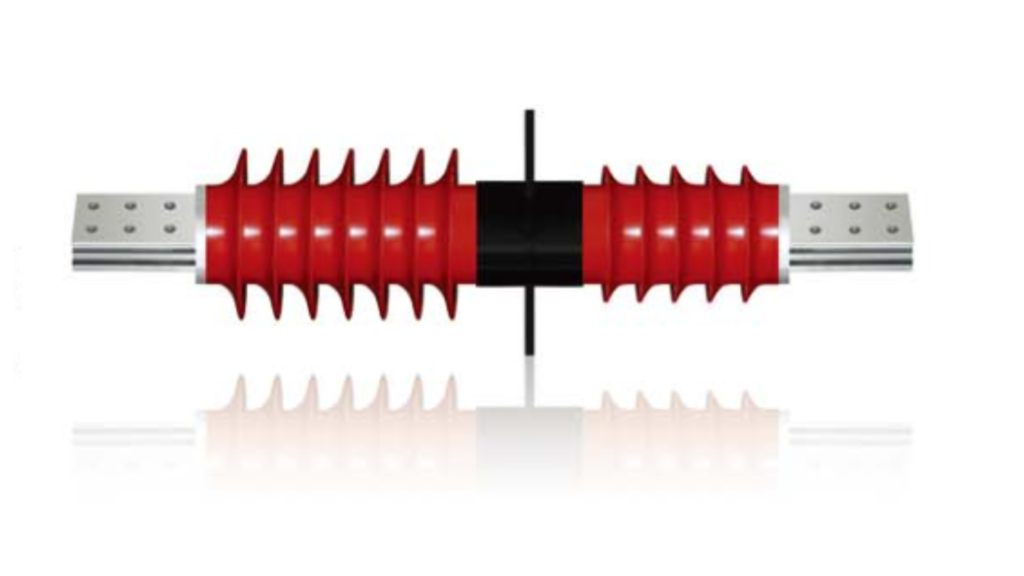

Wall Bushing
Dry capacitance wall bushings provide efficient protection and smart monitoring for pipelines and cables in walls by combining capacitance monitoring technology with traditional bushing functions.

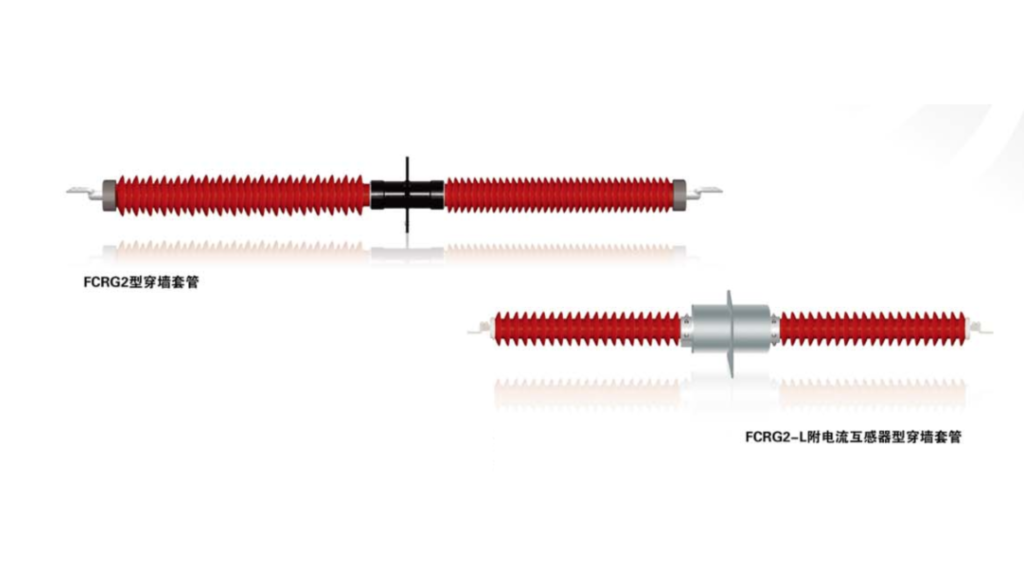

Dry Capacitor Wall Bushing
High Current Dry Capacitor Wall Bushing

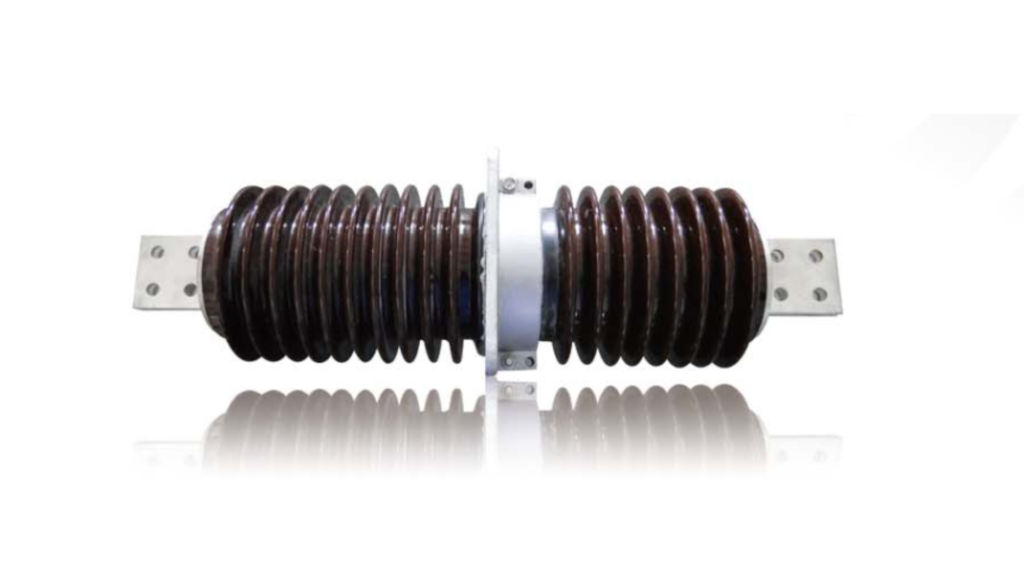

Wall Porcelain Bushing
Composite Insulation Dry Wall Bushing
GIS Bushing
GIS Bushing refers to an insulating component used in Gas-Insulated Switchgear (GIS). Its primary purpose is to insulate and transmit electrical voltage from the GIS equipment to an external electrical circuit. GIS bushings are designed to withstand high-voltage conditions and are crucial for maintaining the integrity and safety of the electrical system. They are widely used in high-voltage and ultra-high-voltage applications.

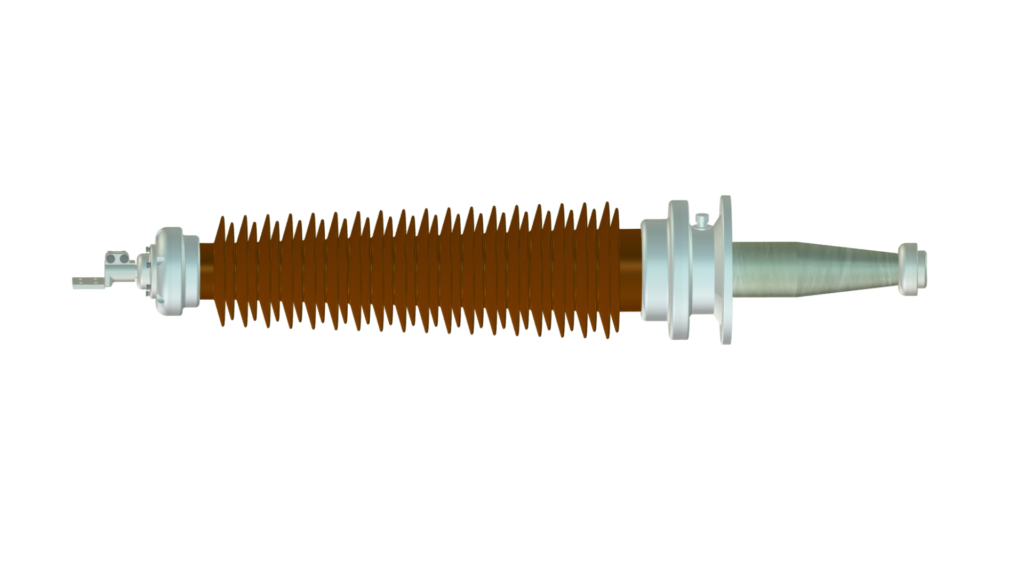

RIF Dry GIS Outlet Bushing (SF6-outdoor Bushing)
External Insulation with Porcelain (72.5 kV-252 kV, 363 kV)

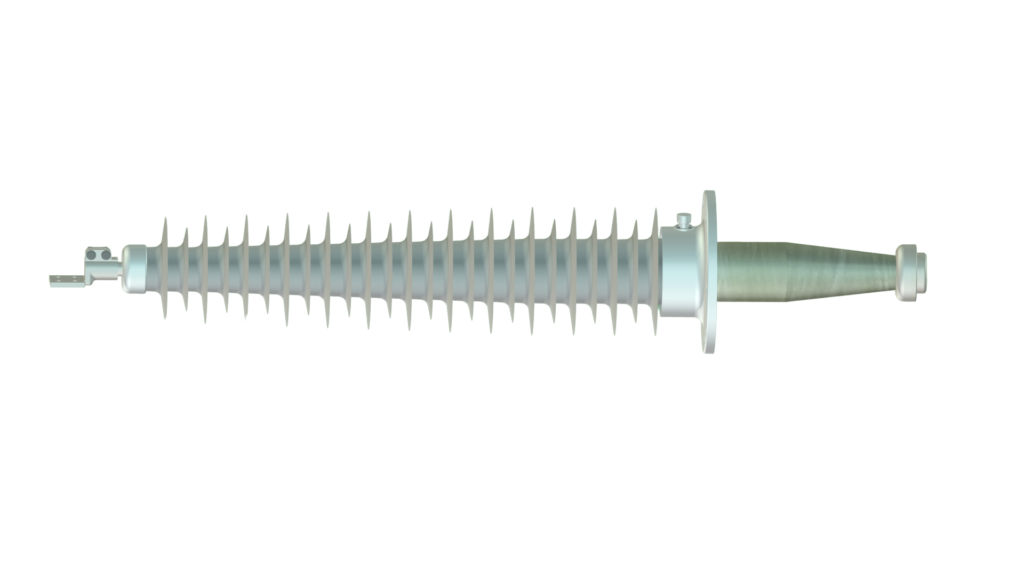

RIF Dry GIS Outlet Bushing (SF6-outdoor Bushing)
External Insulation with Silicone Rubber (72.5 kV-252 kV, 363 kV)
Current Transformer
A Current Transformer (CT) is a specialized type of transformer designed to measure alternating current (AC) in a power system. It converts a high current on the primary side to a proportional lower current on the secondary side, making it safer and more convenient for measurement and protection purposes.CTs are widely used in power distribution systems, industrial equipment, and electrical panels to ensure safety, efficiency, and reliability.

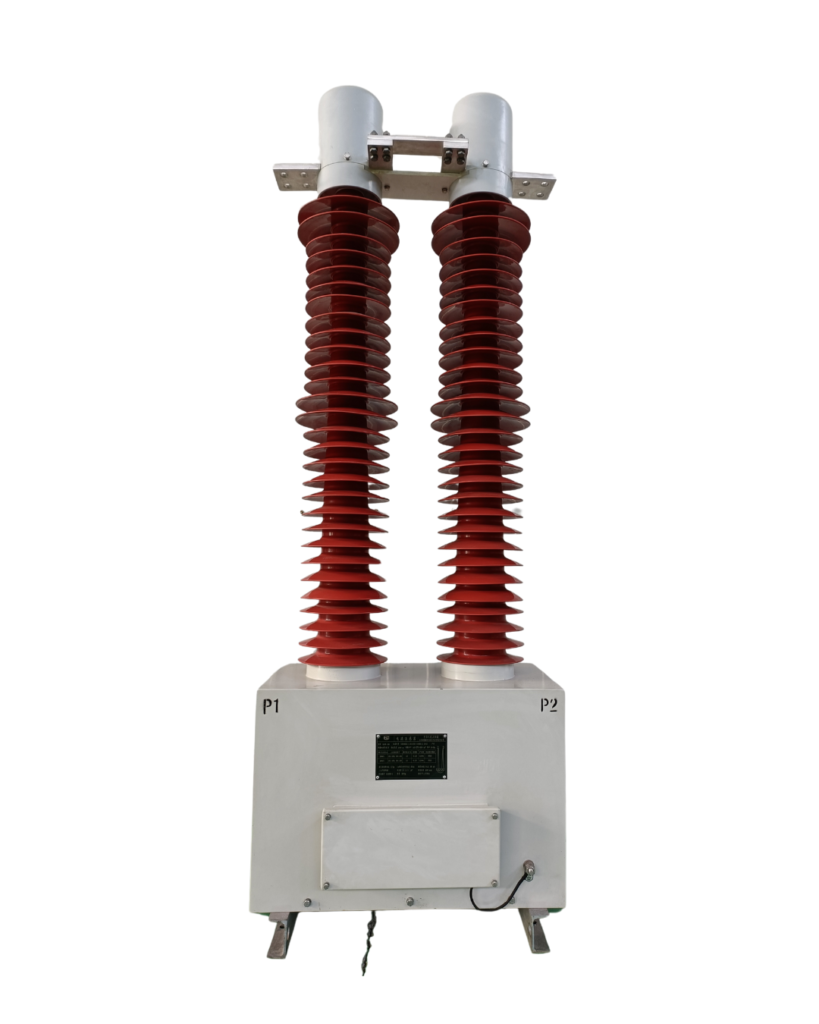

Dry-type Capacitor Current Transformer
